Online Conveyor Parts and Component Store

We've make it easy for you to purchase quality Span Tech parts, conveyor components and other Power Transmission components.

Frame Components

Store / Frame Components

Browse here to find any Span Tech parts that are related to the frame.

Sort by

SPANLON EXTRUDED WEARSTRIP (12 FOOT LENGTHS)

SKU DS2100-01

C$158.00

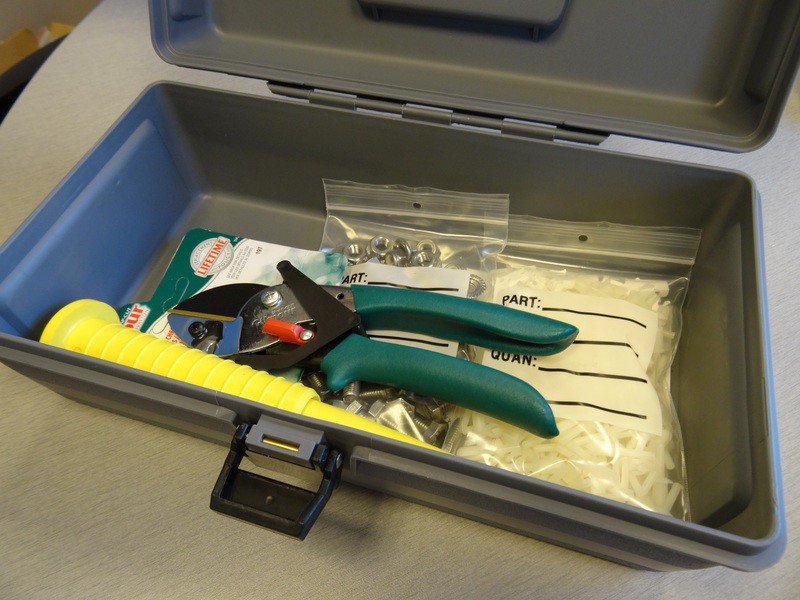

SPAN TECH TOOL KIT

SKU DA3500-M-K-01-M

C$373.36

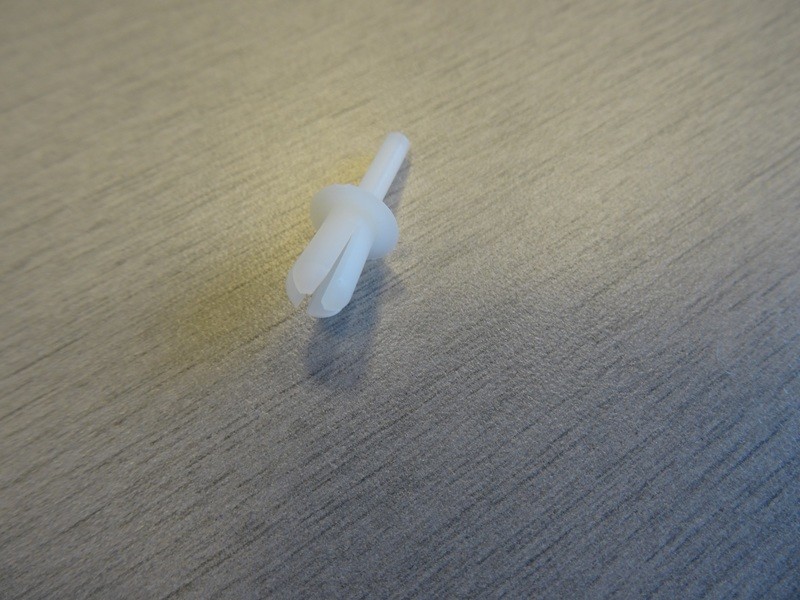

WEARSTRIP RIVET

SKU DS2165

C$0.22

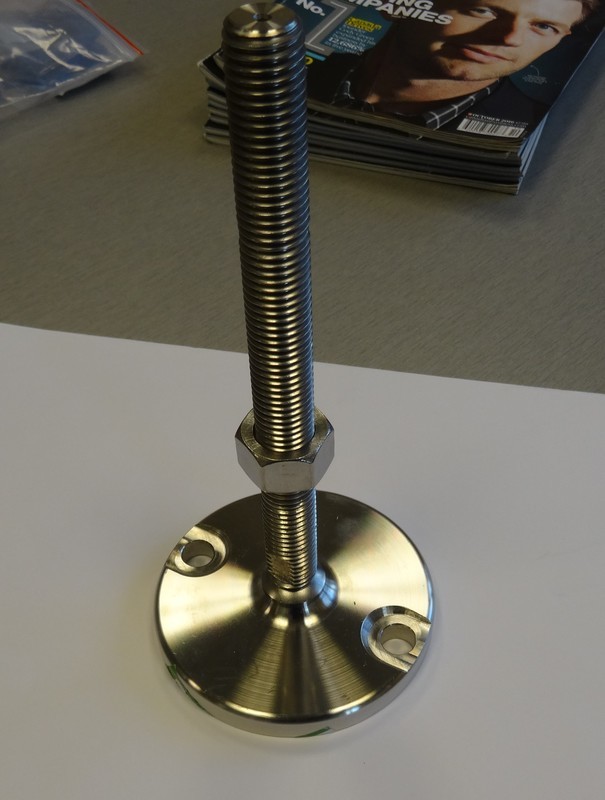

ADJUSTABLE LEVEL PAD (3/4 INCH THREAD X 8")

SKU 304-FOOT-LEVEL-110-3/4-8

C$66.15

ADJUSTABLE LEVEL PAD (1 INCH THREAD X 8")

SKU 304-FOOT-LEVEL-150-1-8

C$103.25

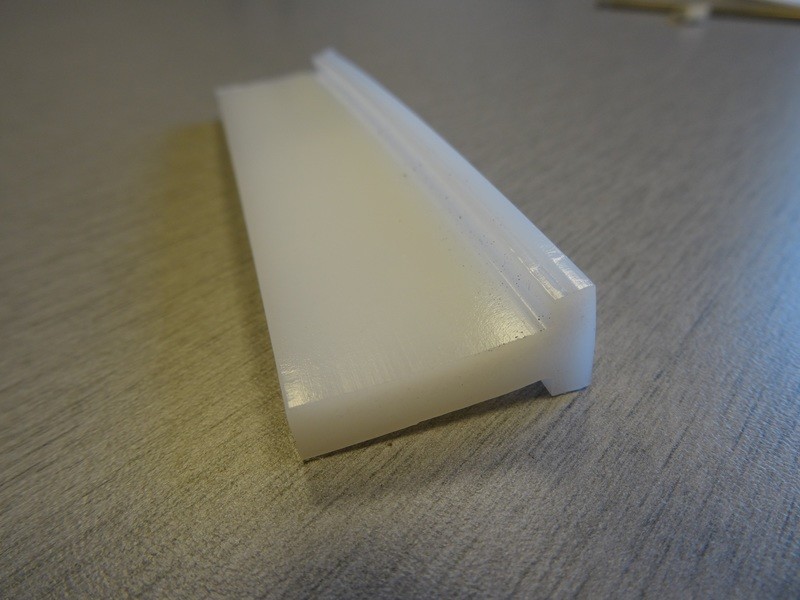

UHMW CENTER SUPPORT T-RAIL

SKU DS2135

C$6.46

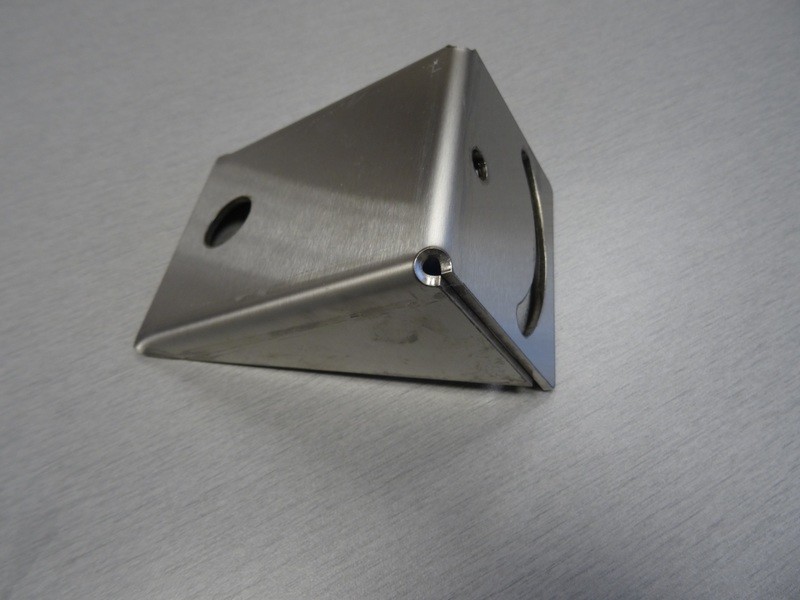

CEILING HANGER BRACKET

SKU DS2094-01

C$63.25

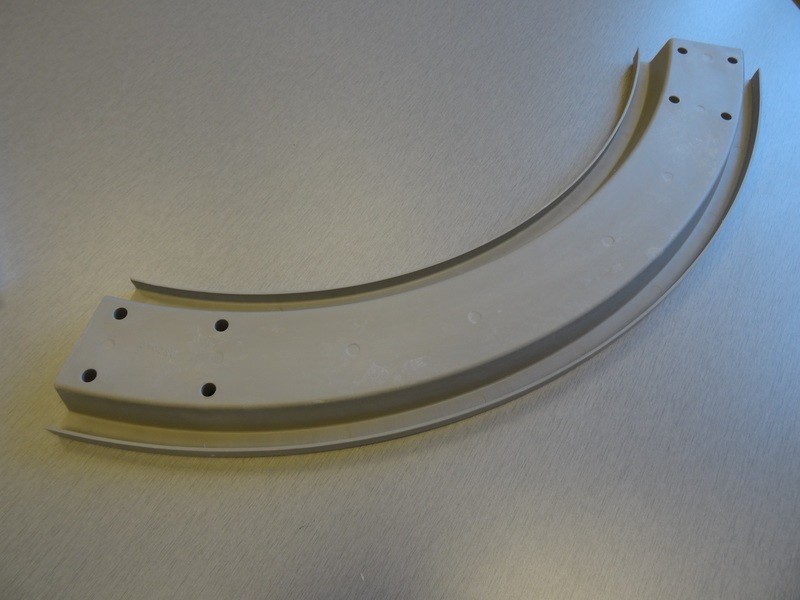

90° VERTICAL BEND PROFILE MOLDED

SKU DS2040

C$57.33

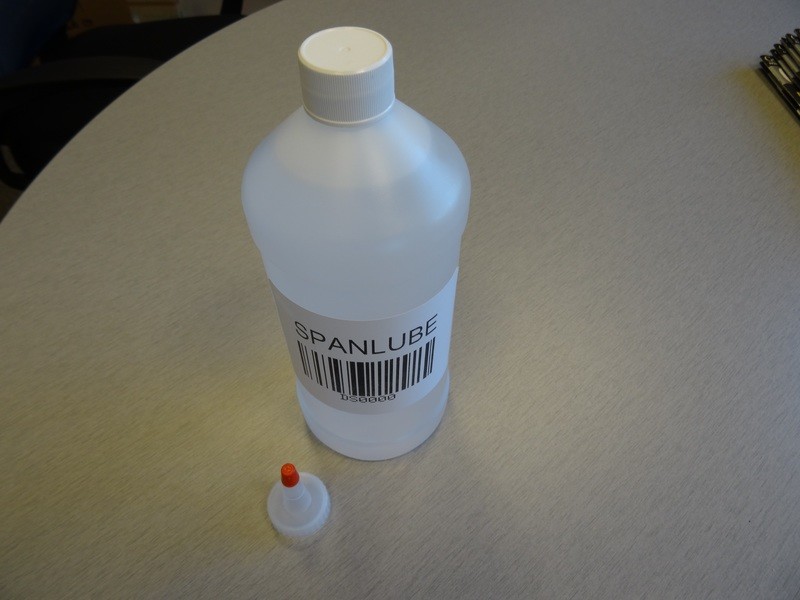

SPAN LUBE

SKU DS40

C$137.27

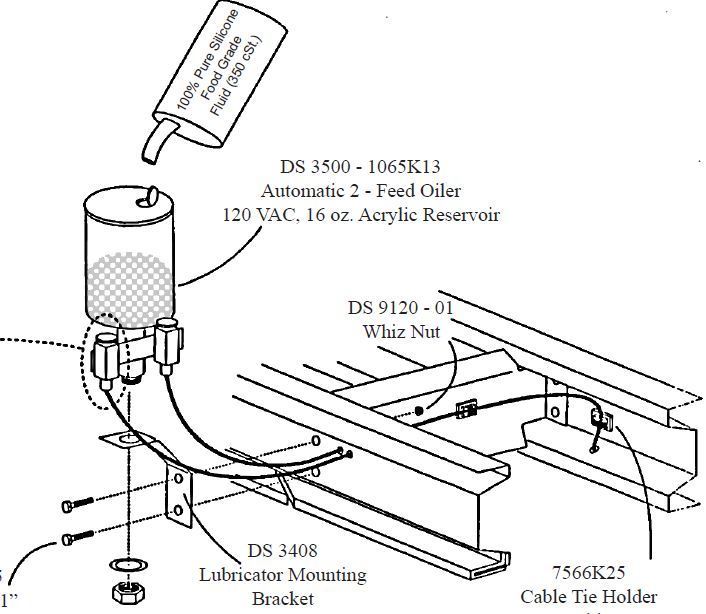

AUTO LUBRICATING SYSTEM

SKU DA3500-2F

C$995.00

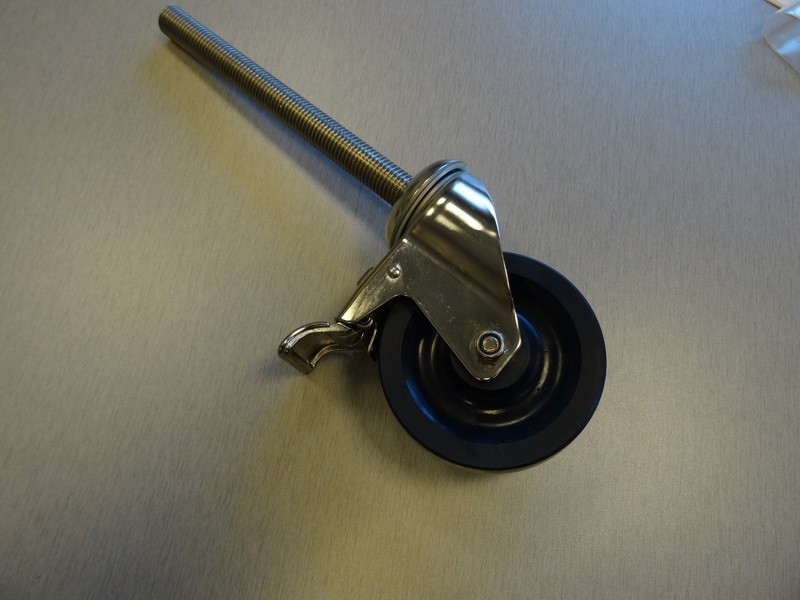

SWIVEL TOTAL LOCKING CASTER

SKU 304-CASTER-TL-SS-WD4-TH075X8

C$79.31

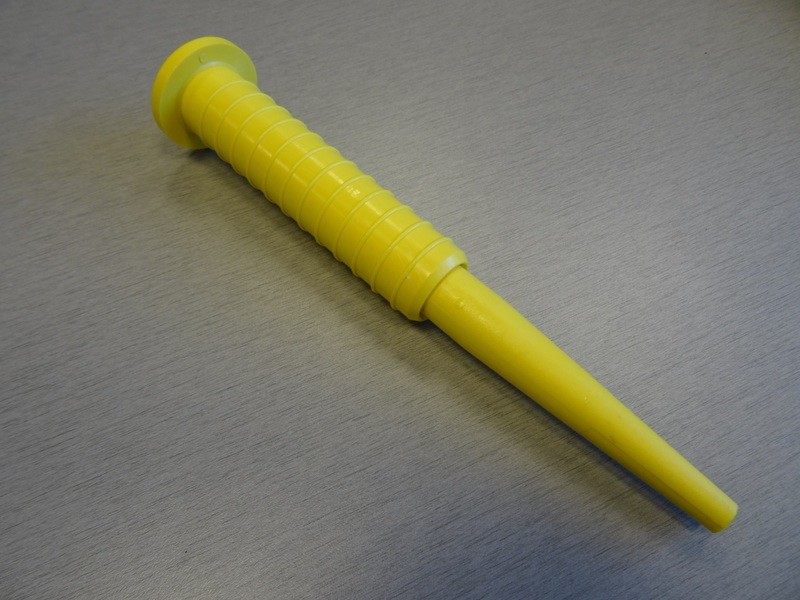

RIVET TOOL

SKU 61PRT0125

C$146.85

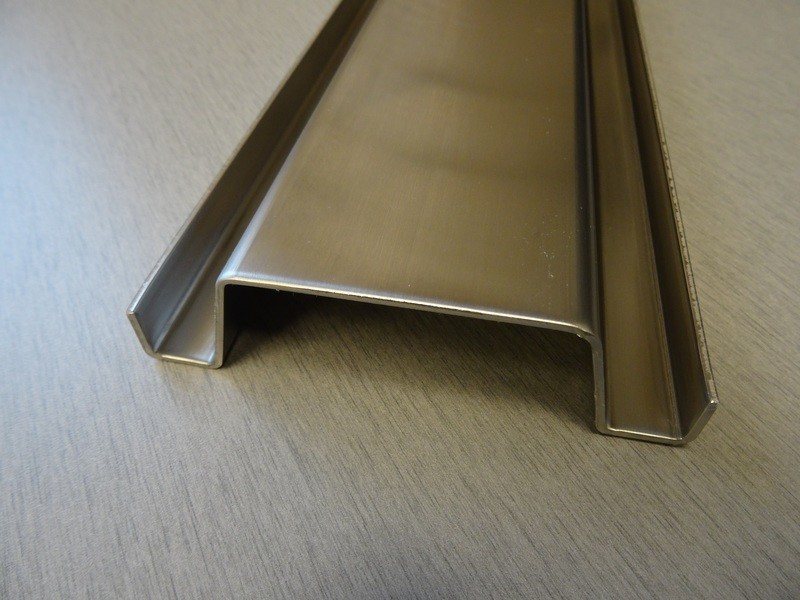

SIDE FRAME PROFILE

SKU DS2000

C$0.87

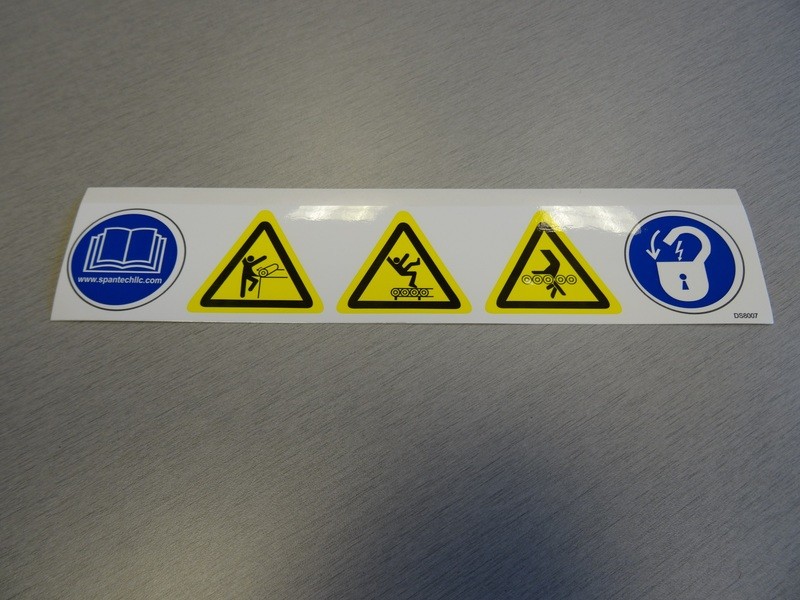

SAFETY STICKER

SKU DS8007

C$4.21

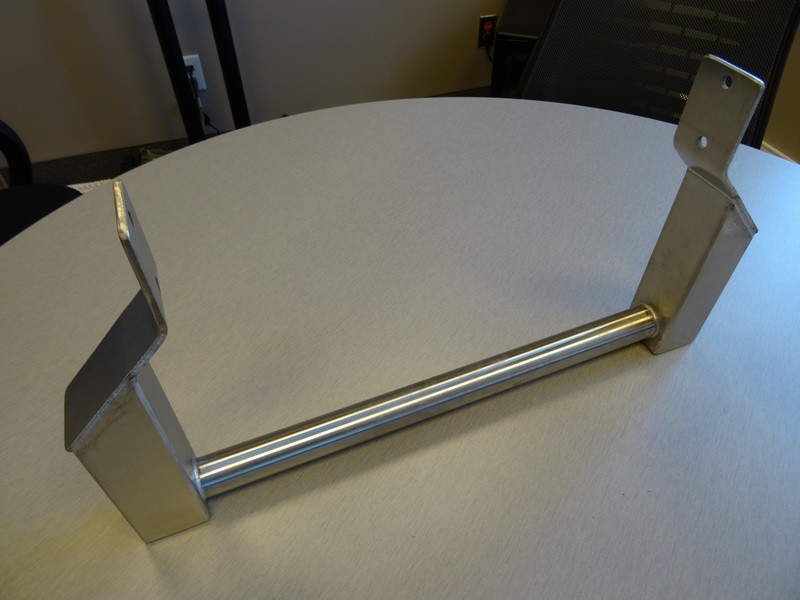

CONVEYOR SUPPORT

SKU 304-LEG-SS-0000

C$250.00

CONNECTING STRAP - FOR HORIZONTAL CURVES ONLY

SKU DS2010

C$19.58

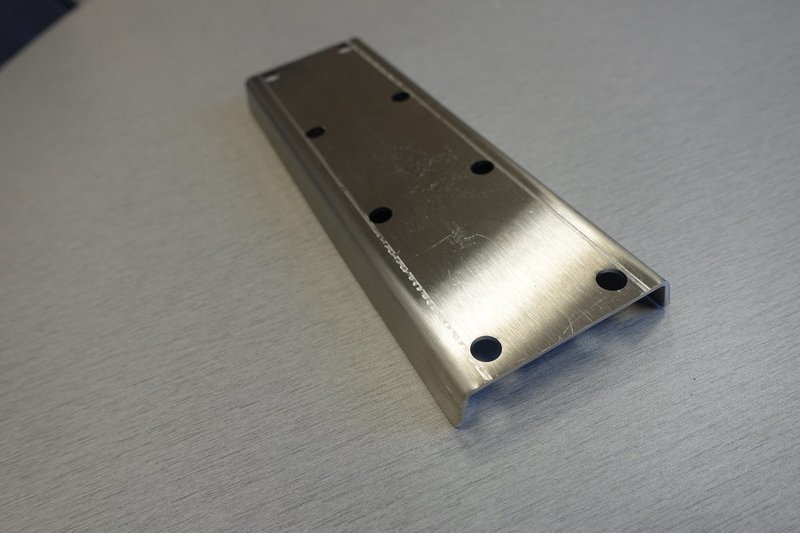

CONNECTING STRAP - STRAIGHT RUNS

SKU DS201X

C$0.00

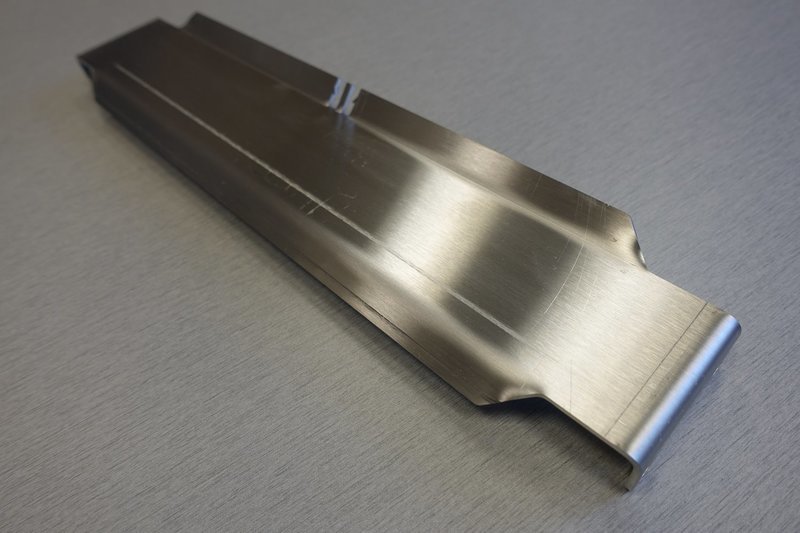

CROSS BARS - STAINLESS STEEL

SKU 00002

C$0.00

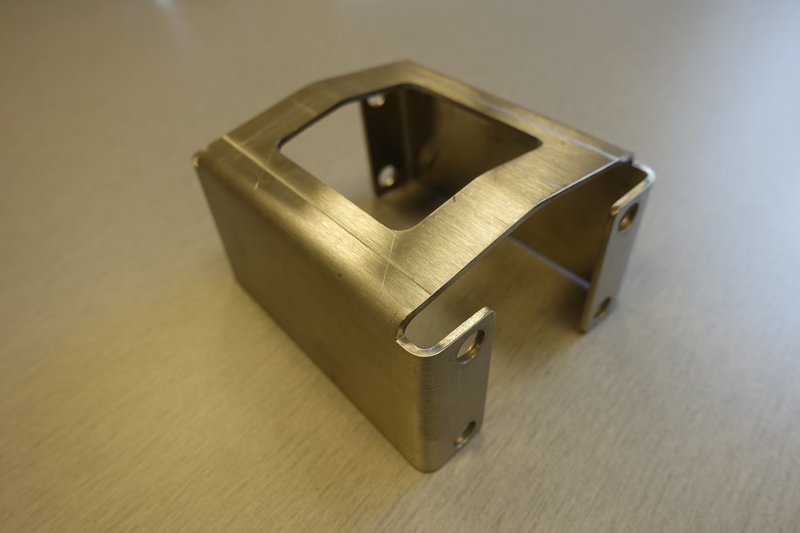

CROSS BARS DRIVE IDLER - STAINLESS STEEL

SKU CBS0000-D/I

C$0.00
