GUIDE RAIL BRACKET - CHANNEL (W-0) (H-0-2) STAINLESS STEEL

Name: Guide Rail Bracket - Channel (W-0) (H-0-2) Stainless Steel - Conovey
SKU: DS4401-01-SS
Price: 30.9 CAD
Availability: InStock

Store/SPAN TECH PARTS/Wear Strip & Guide Rail Components

SKU DS4401-01-SS

C$30.90

In stock

Quantity:

Share this product with your friends

Share Share Pin it

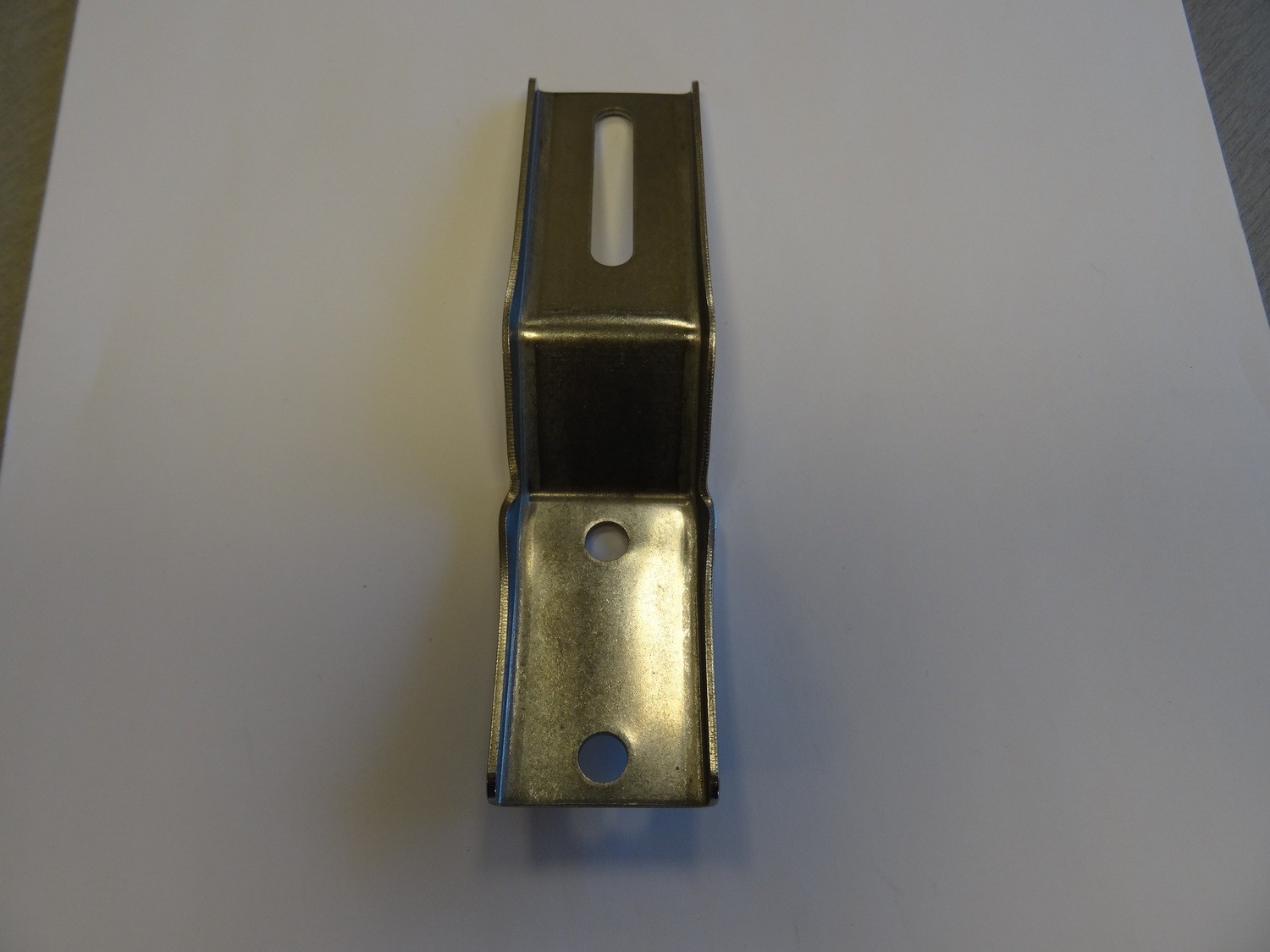

GUIDE RAIL BRACKET - CHANNEL (W-0) (H-0-2) STAINLESS STEEL

Store/SPAN TECH PARTS/Wear Strip & Guide Rail Components

Product Details

Weight: 0.13 lbs

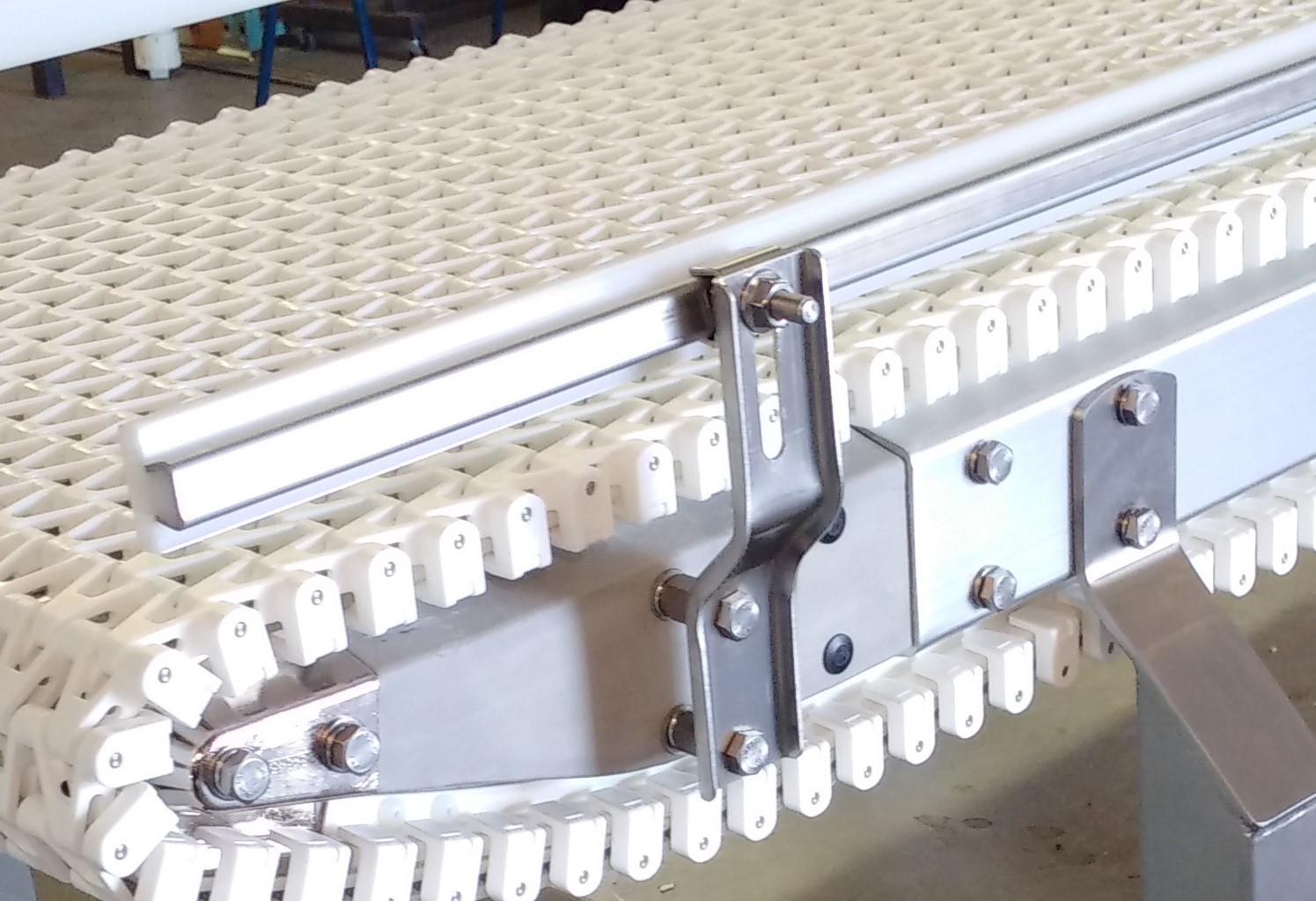

This is our standard fixed guide rail bracket. Made in one piece from durable 304 stainless steel. It is designed to work with our compression rail clip (304-CLIP-RAIL-NUT) to provide 0-2 inches of height adjustment. Bottom holes are for M8 bolts on 44mm centers.
