Online Conveyor Parts and Component Store

We've make it easy for you to purchase quality Span Tech parts, conveyor components and other Power Transmission components.

SPAN TECH STANDARD DRIVE SHAFT

Name: Span Tech Standard Drive Shaft - Conovey
Brand: Span Tech
SKU: M0000xSA00HxxR02
Availability: InStock

Store/SPAN TECH PARTS/Drive Components

SKU M0000xSA00HxxR02

C$0.00

CHAIN WIDTH (INCHES)

Please choose

MICROSPAN SHAFT EXTENSION

MICROSPAN SHAFT EXTENSION (+C$75.00)

GEARBOX TYPE

SEW WA20 - 20MM

SEW WA30 - 20MM

SEW SA37 - 20MM

SEW SA47 - 30MM

SEW SA57 - 30MM

SEW MOVIGEAR MGF2 - 30MM

SEW MOVIGEAR MGF4 - 30MM

In stock

Quantity:

Share this product with your friends

Share Share Pin it

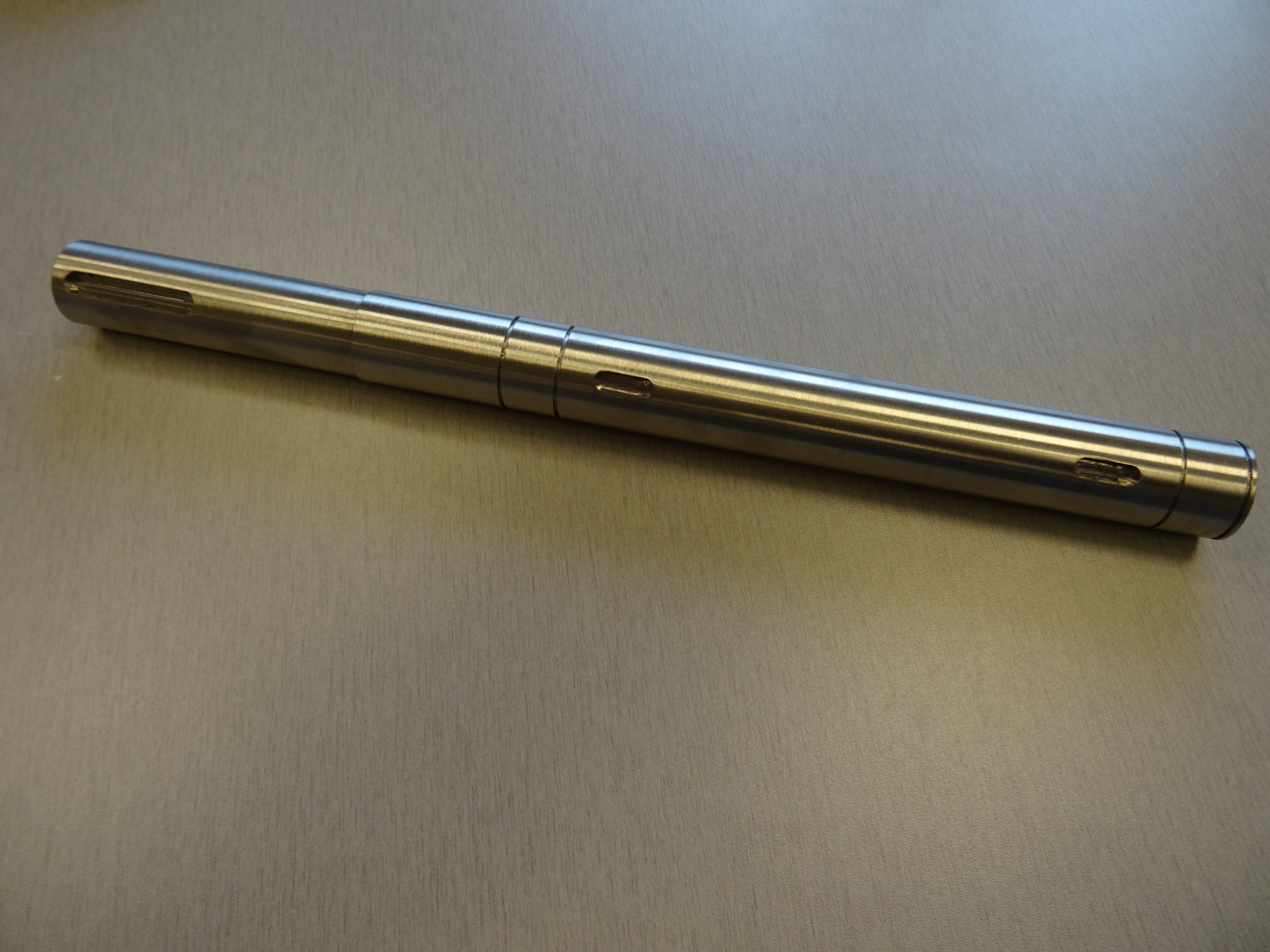

SPAN TECH STANDARD DRIVE SHAFT

Store/SPAN TECH PARTS/Drive Components

Product Details

Ratio: Span Tech

This item, a standard Span Tech Drive Shaft, is compatible with both 25MM and 50MM chains. It has available option of shaft extension on one side (approximately 2" long) for MST (MicroSpan Transfer).

Standard shaft options are:

SEW WA20 (20mm bore)

SEW WA30 (20mm bore)

SEW SA37 (20mm bore)

SEW SA47 (30mm bore)

SEW SA57 (30mm bore)

SEW MGF2 - Movigear (30mm bore)

SEW MGF4 - Movigear (30mm bore)
