GUIDE BAR ROD

Name: Guide Bar Rod - Conovey
SKU: 304-ROD-GUIDE-M8-0.0
Availability: InStock

304-ROD-GUIDE-M8-0.0

C$0.00

In stock

Quantity:

Product Details

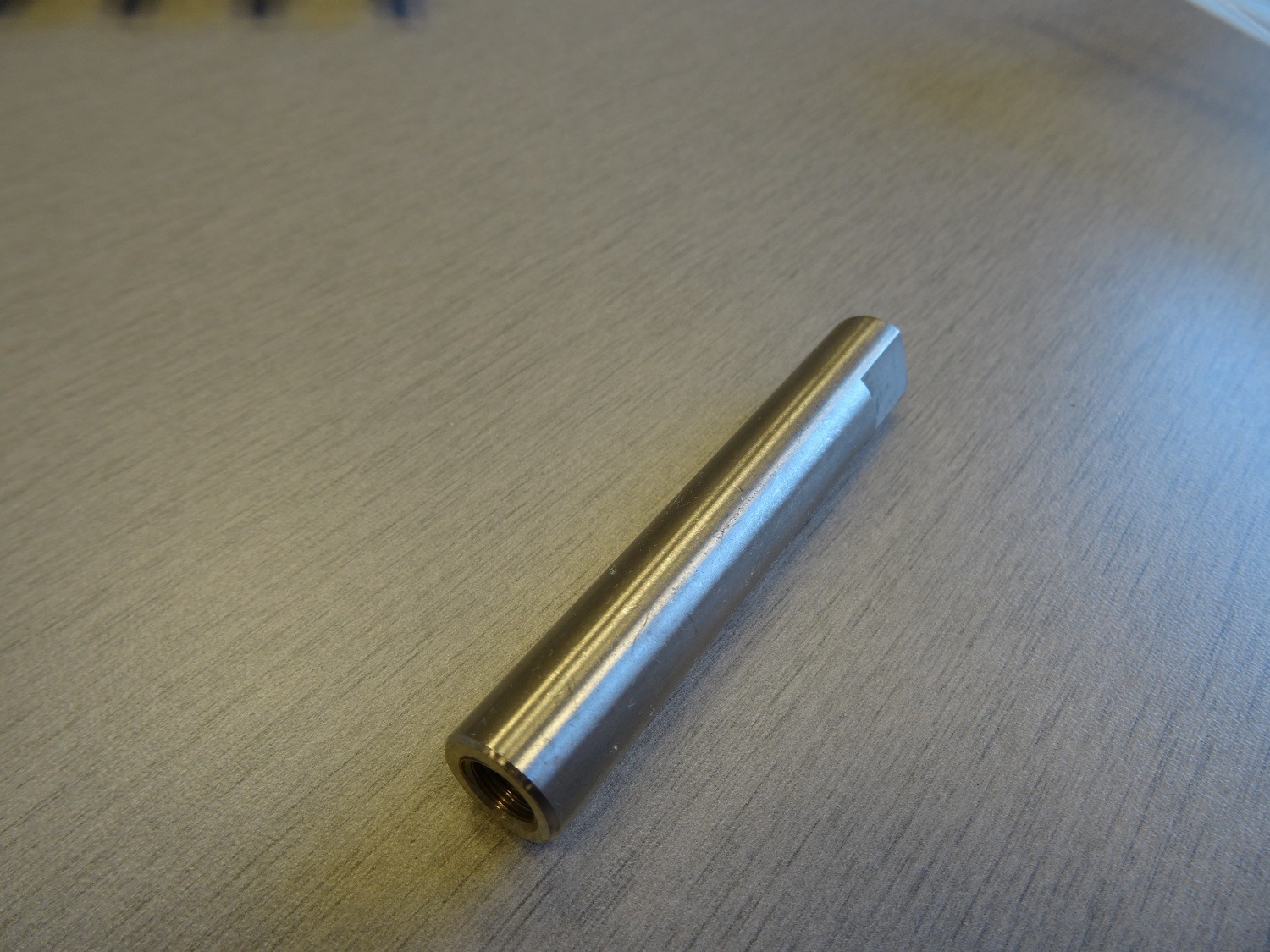

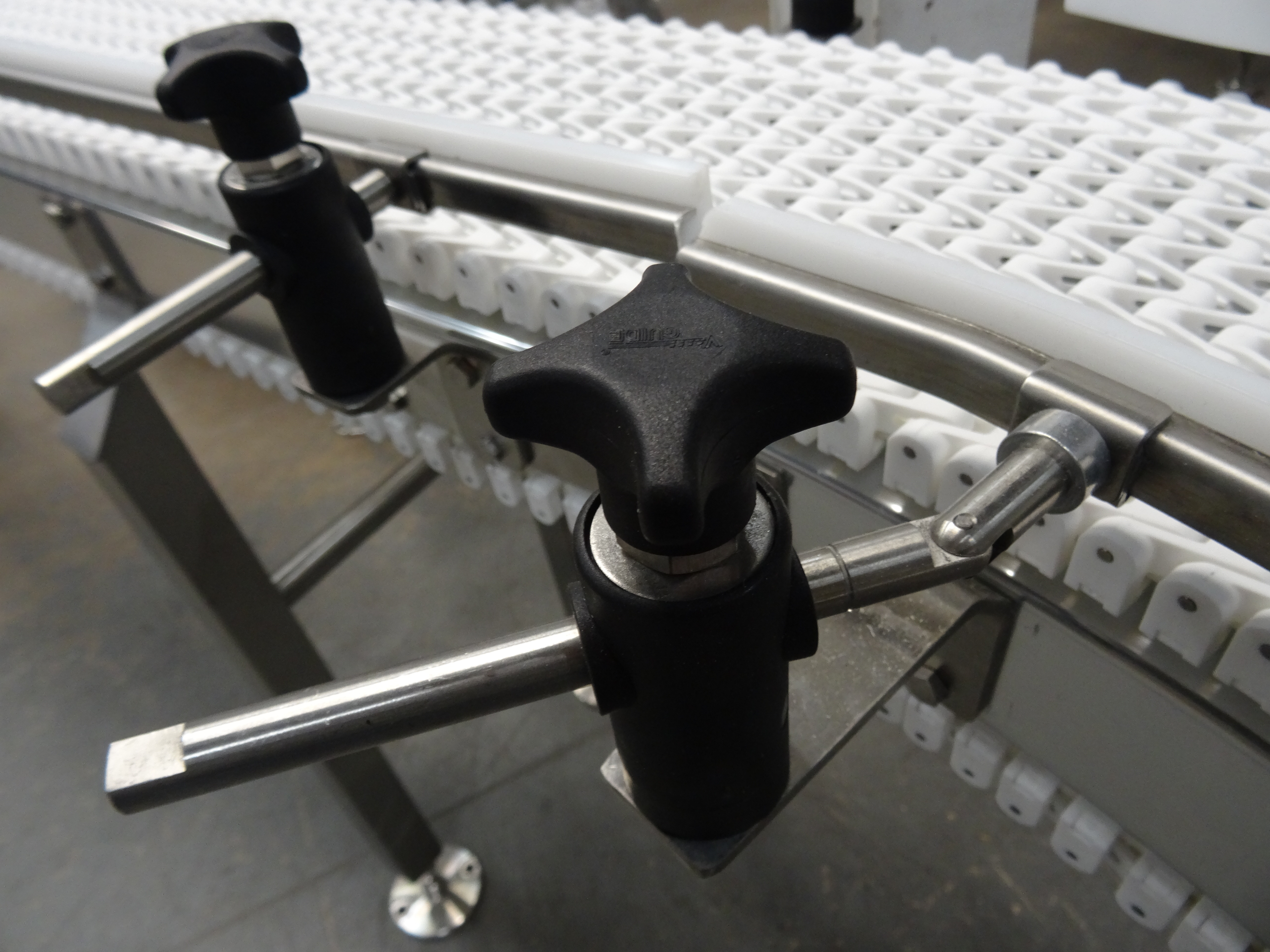

his item is our standard guide rod used to make adjustable guide rails. It is used in combination with 304-SPACER-TOWER and 304-CLIP-RAIL-NUT and 304-JOINT-SWIVEL-M8. It is available in a variety of standard lengths from our drop down menu. The rod is made from 304 stainless steel, has a wrench flat at one end and is tapped M8-1.25X20 deep at other end.
