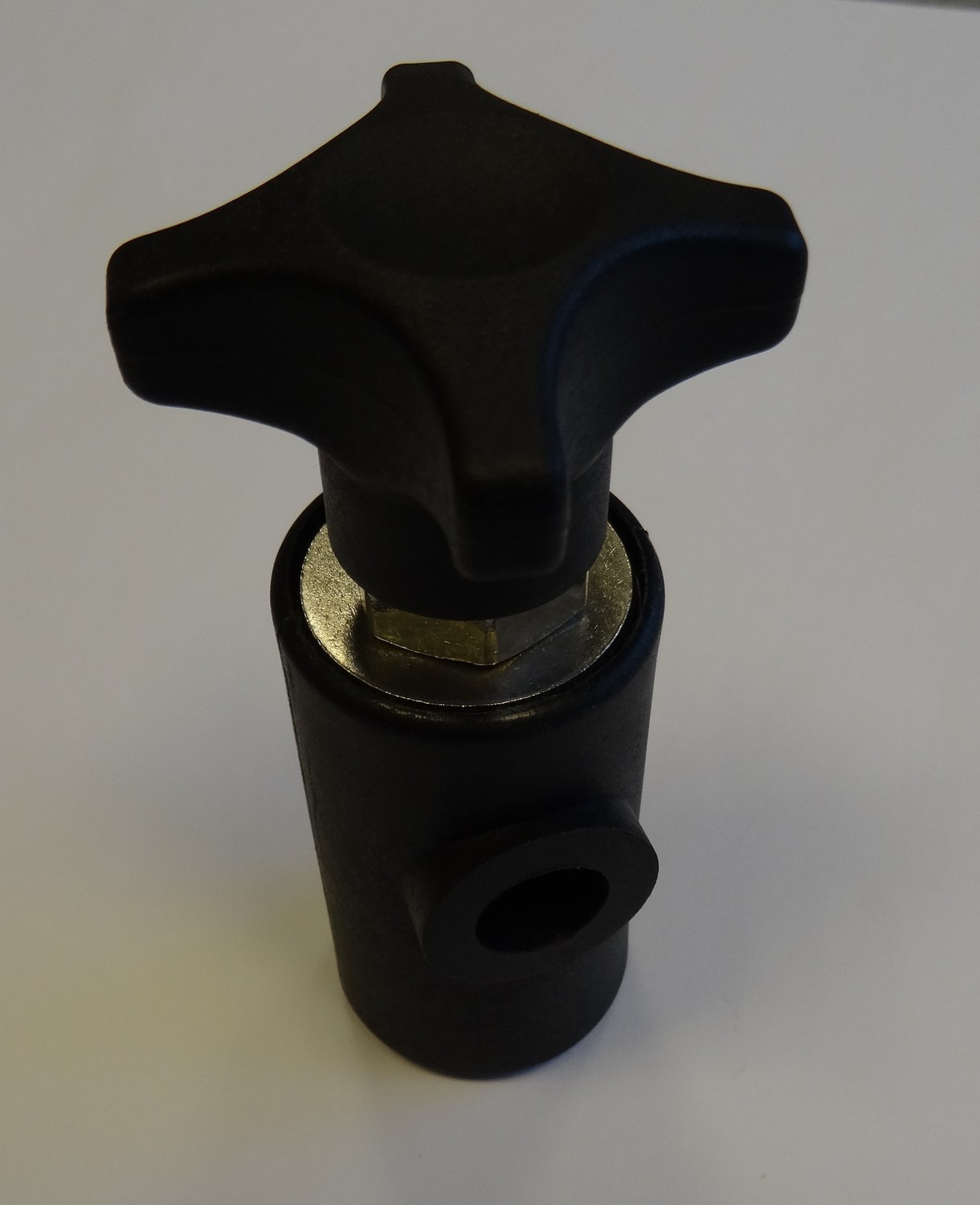

ADJUSTABLE TOWER GUIDE FOR 1/2" ROD

Name: Adjustable Tower Guide For 1/2" Rod - Conovey
SKU: 304-TOWER-GUIDE
Price: 26.76 CAD
Availability: InStock

Store/SPAN TECH PARTS/Wear Strip & Guide Rail Components

SKU 304-TOWER-GUIDE

C$26.76

In stock

Quantity:

Share this product with your friends

Share Share Pin it

ADJUSTABLE TOWER GUIDE FOR 1/2" ROD

Store/SPAN TECH PARTS/Wear Strip & Guide Rail Components

Product Details

Weight: 0.13 lbs

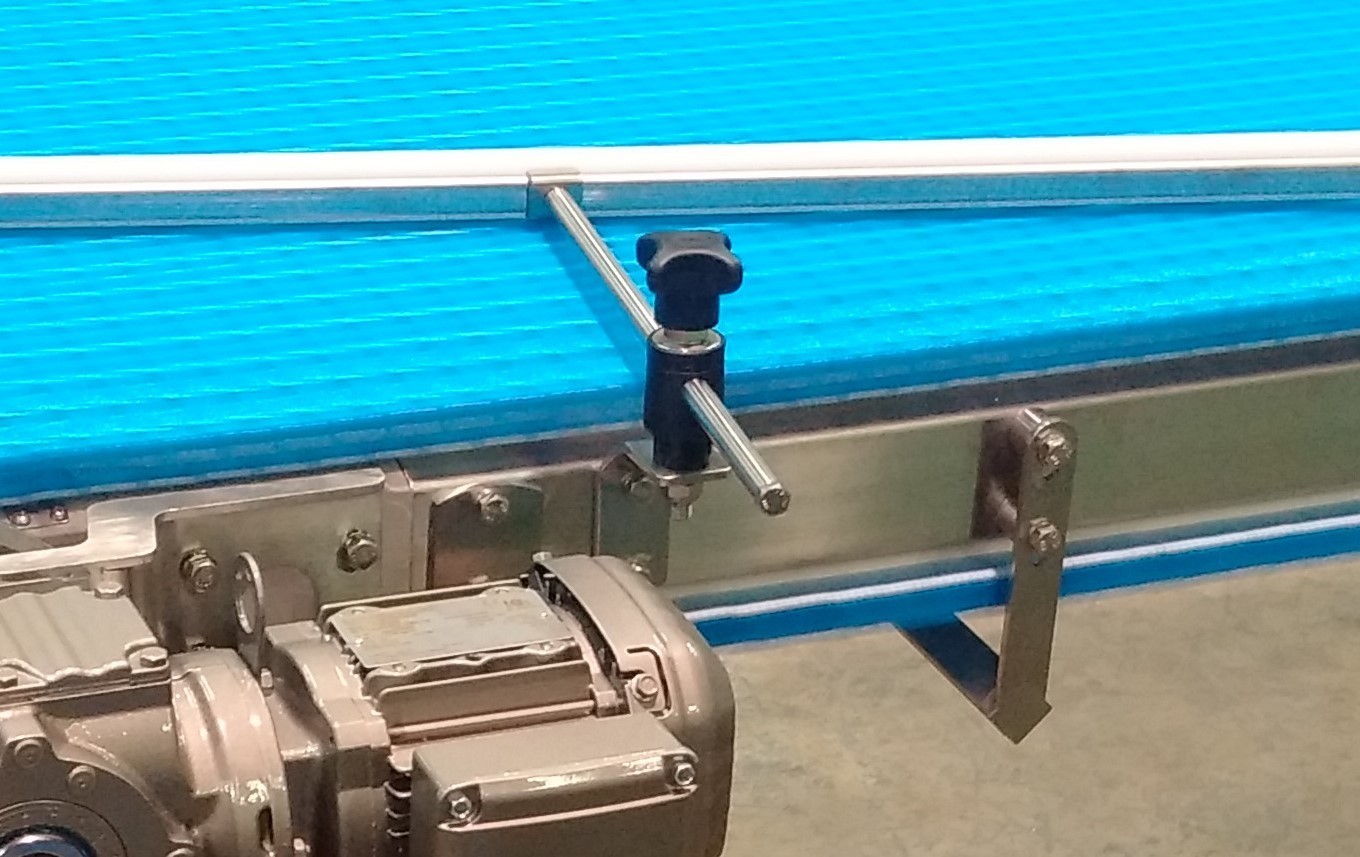

This is a high quality adjustable tower guide rod for 1/2" rods. It is used to make product guide rails fully adjustable. The tower comes complete with M10-1.5X35MM fixing bolt and nut. It is normally used in combination with 304-ROD-GUIDE-5 (5 inch long guide rod), 304-SPACER-TOWER and DS48196-02 (adjustable bracket base).
