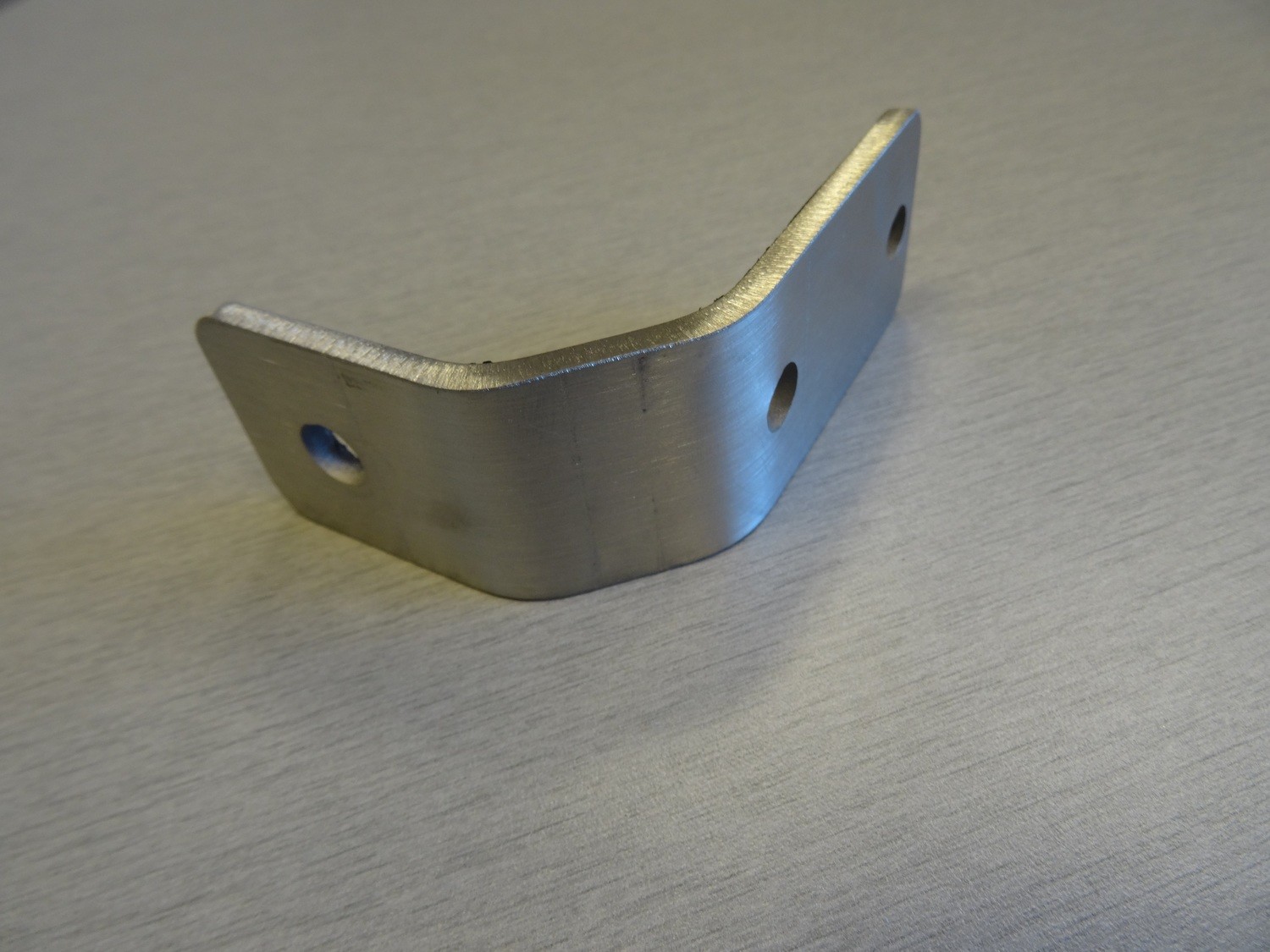

ADJUSTABLE BRACKET BASE STAINLESS STEEL

Name: Adjustable Bracket Base Stainless Steel - Conovey
SKU: DS48196-02
Price: 11.25 CAD
Availability: InStock

DS48196-02

C$11.25

In stock

Quantity:

Product Details

This adjustable bracket base is made from quality 304 stainless steel and is fully de-burred. It is designed to work with 304-TOWER-GUIDE (adjustable guide tower) and comes complete with 2 X M8X20MM hex head bolts and two M8 Whiz nuts.
